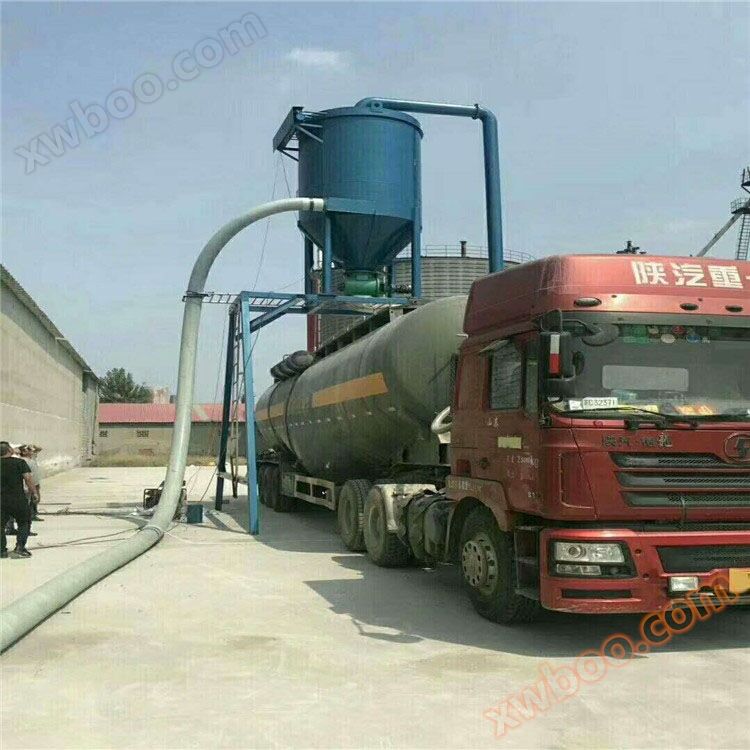

The negative pressure generated by the suction machine transports materials from one location to another through pipelines, and the entire transportation process is completed completely in a closed state, eliminating the pollution and harm caused by dust to the working environment, surrounding environment, and operators. It has high measurement accuracy and is suitable for industries such as pharmaceuticals, food, chemicals, and batteries.

　　

The material that can be conveyed by the suction machine

　　

Medications: Niuhuang powder, Amoxicillin light powder, Calcium carbonate powder, Chinese herbal extract powder, VC Yinqiao powder, Cefalexin powder, Vitamin raw material powder, Paracetamol powder, Intestinal worm serum powder, Windia powder, Garlic powder, Barium sulfate, Sodium chloride, Cellulose powder, Sodium bicarbonate, Plant medicine powder, Slime sulfate, Diarrhea… …

　　

Food: seasoning, baking agent, cheese powder, cocoa powder, crystalline sugar, curry powder, fruit juice powder, lactose, pepper powder, starch, baking powder, coffee beans, milk powder, tea, chewing gum raw material powder… …

　　

Chemical industry: Activated carbon powder, alumina, aluminum hydroxide, zinc stearate, filter cake, sodium cyanide, bentonite, calcium carbonate, diatomaceous earth, sodium hydroxide, cigarette ash, tetranitromethane, silicon carbon, silicon dioxide, sodium nitrate, melamine powder, zeolite… … Pigments and coatings: dye powder, epoxy resin, acrylic polymer, titanium dioxide, toner powder, polytetrafluoroethylene powder… …

　　

Plastic: polyethylene particles, polystyrene particles, polyurethane particles, rubber particles, ethylene/propylene particles… … Other: cement, casting auxiliary materials, welding powder, quartz particles, sand particles, grain seeds… …

　　

Suction machine accessories:

　　

PE-HD type filter, with specifications ofØ 40× 60/200mm，G 3/4″ External thread, material UHMWPE (high-density polyethylene), FDA certified, aperture size

　　

Tik7 filter, electrically conductive polyester structure containing polytetrafluoroethylene diaphragm, material certified by FDA, specifications&Osslash; 120× 200mm、＆Oslash； 120× 300mm、＆Oslash； 120× 600mm. The pore size is less than 0.2 microns, which can effectively filter small particles with a filtration efficiency of up to 99.9%. DMT is less than 108 ohms, and the maximum working temperature is 120 ℃.

　　

Vibrator: Helps material discharge more smoothly and quickly, preventing material from adhering to the inner wall of the cylinder after absorbing moisture. The vibration intensity can be adjusted, and the vibrator only works during discharge. Compressed air is used as the power source, and the noise is 50-70dB

　　

Stainless steel suction tube:

　　

Sanitary grade stainless steel straw, made of stainless steel 304 or 316L, with specifications of 32mm, 40mm, 50mm, 75mm, and 100mm

　　

PVC suction hose:

　　

The material is PVC plastic lined with metal wire, anti-static, vacuum resistant, and works at a temperature of -10 ℃~60 ℃.

　　

PUR suction hose:

　　

The material is polyurethane lined metal wire, anti-static, vacuum resistant, working temperature -40 ℃~90 ℃, and the material has been certified by FDA.

　　

Characteristics of suction products:

　　

Equipment disassembly and cleaning are convenient and simple;

　　

The polishing accuracy can reach 400 #, meeting the requirements of food grade and pharmaceutical grade;

　　

Multiple materials can be selected according to customer requirements: stainless steel (SS304, SS304L, SS316, SS316L), carbon steel, etc;

　　

The equipment operates with low noise and does not generate heat or oil pollution;

　　

The transportation process of the powder is carried out in a completely enclosed environment, and there will be no dust leakage;

　　

Automated control system ensures efficient and reliable operation.
